A premiere power conditioner of superlative performance, The Sequoia...
The top of the line AC power Conditioners.
    This was developed over a long period of time, evolved to fit the environment it thrives in, producing the most environmentally tranquil AC Power from a very harsh world of AC power noise. Sublime yet absolute control and protection beyond expectations.  The award winning heart of the design is found in several of our products because it just works so well... Exclusively designed and made by JENA. this is defining an Elite product because there is nothing better.

  All Sequoia main-board* based designs include the BIFROST© voltage... and current circuit protection electronics.


The sequoia in use
The Sequoia is unlike any product made.

Authentic in every way... First and foremost it Performs phenomenally great.

Built for the new professional Neutrik©® Power-Con locking system, much preferred in modern studio systems...
...which means the in and outs are of a locking type to prevent accidental AC pull outs.
(as shown below)


Neutrik power-con 32Neutrik logoPower-con 32 inputOur Standard is to use the
Neutrik Locking 32 Amp input system components.
(As above) input Standard for the Sequoia, or...

In the Standard NEMA... system with heavy duty 20 Amp Rated Duplexes.
NEMA JENA/Hubble Duplexes.
hubbell-JENA

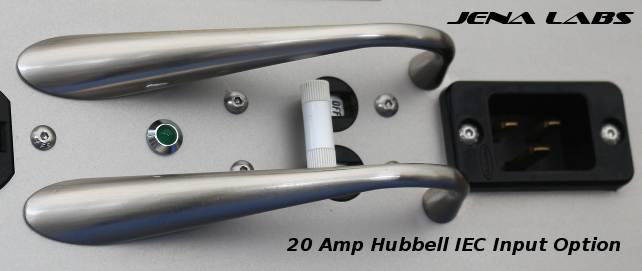

And the 20 Amp IEC Hubbell input connector (not Locking) optional selection.optional input
The choice is yours...

NEMA.

The System is made with the same care in every respect...
power-con-version.
The outer case is real Bamboo and the Stainless Steel Top plate is 304 SS of heavy gauge (.105 in) 2.65 mm approx.

Comes with super secure plated brass handle's and protectors cover the 20 Amp Dual Eaton/Heinemann type JA2 Magnetic-Hydraulic Circuit Breaker / Power Switch. (Mil Spec. certified - Marine Grade suppressed spark)

The end handles for lifting the entire unit are plated brass of substantial mounting. hardened steel 8x32 1/2 Allen

The Sequoia Features these advantages and general Features in the design of the system:

A sequoia in use:
Jason System.

This system is in New Zealand. Set up for 230VAC and Power-Con inputs and Outputs
Jason's Parmenter system.
Amplifiers - Pass Labs XA160.8 mono blocks.
Speakers - Parmenter Fat Boys.
Cables - Jena Labs Aurora Interconnects and Twin 11 speaker cables.
Power Conditioner - Jena Labs Sequoia.

not shown but in use:

Turntable - SME 30.12a with SME V12 tonearm.
Cartridge - AirTight PC-7.
Phono Stage - Pass Labs XP27.
Preamplifier - Parmenter Anniversary.
CD Transport - CEC CD5
DAC - Lampizator Golden Atlantic balanced.

Jena Labs Sequoia, Technical aspects:
First, lots of parts
lots of parts

This is what is internal to it:
inside the case.
Above: Fully Wired, The Bamboo case is lined with cork for anti-vibration.

Why are we showing the inside of it, when other company's are fearful of showing what they made.
We have no shame in anything we design and we have no fear showing it...
...It is not an embarrassment, It is pure achievement, nothing competes with this AC Power Conditioner.
We are proud of what we have done.

sequoia internals.
(Above)

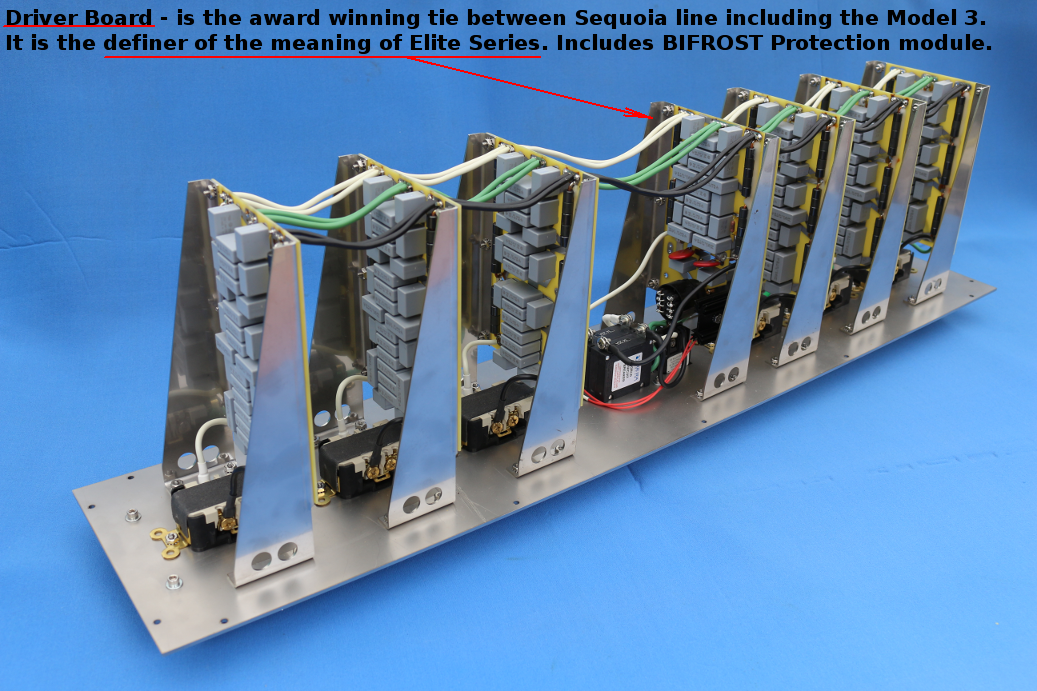

There are 6 individual Boards identical to each other over the six Duplexes or over 12 Power-con 20 amp output in pairs.
Above: Early version, Fully Wired NEMA Version.

The input driver board of the Sequoia design, is used in several of our AC power conditioners...
driver board an Early Version of the driver board

    these Products have been reviewed.. and won awards on performance.

Brutus Award.Elite Model 3.
Seedling and Twig.Sequoia Seedling
Above: Fully Wired, The Bamboo case is lined with cork for anti-vibration.
Jena Labs Sequoia.
The Sequoia driver stage as a main-board alone can provide enough AC conditioning to support entire products and do so.


More Soon
